AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI

Description

AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI

The AJA IPR-10G2-SDI is a robust video and audio converter designed to bridge IP-based workflows with traditional SDI environments. It supports HD SMPTE ST 2110 video and audio streams, converting them to 3G-SDI outputs, making it an essential tool for broadcasters and production professionals managing IP and SDI workflows. This device ensures smooth interoperability between IP video networks and established SDI infrastructures, offering both flexibility and efficiency in various broadcast and live production setups.SMPTE ST 2110 to 3G-SDI ConversionThe IPR-10G2-SDI efficiently converts SMPTE ST 2110 IP video streams into 3G-SDI outputs, allowing seamless integration between IP-based video sources and traditional SDI-based equipment. This conversion is critical for professionals who need to interface newer IP video technology with existing 3G-SDI production gear, including switchers, monitors, and recording devices.By supporting HD video formats, the IPR-10G2-SDI helps broadcasters and production teams handle high-quality video content with ease. This makes the device particularly useful in environments transitioning from traditional SDI workflows to IP-based systems while maintaining compatibility with legacy SDI equipment.Audio and Ancillary Data SupportIn addition to video, the AJA IPR-10G2-SDI supports embedded SMPTE ST 2110 audio and ancillary data streams. It provides multi-channel audio over SDI, allowing users to preserve high-quality, multi-track audio during conversion. This feature ensures that not only the video but also all necessary audio and metadata are maintained when transitioning from IP to SDI, making it a well-rounded solution for complex production environments.The device is also capable of handling audio de-embedding, giving users the ability to manage multiple channels of audio efficiently in their SDI workflows.Low Latency and High PerformanceDesigned for demanding live production and broadcasting environments, the IPR-10G2-SDI offers low latency conversion, ensuring real-time video and audio delivery with minimal delay. This low-latency performance is crucial in live broadcasts, where synchronization between audio and video must be maintained, and any delay can be disruptive.The converter also boasts high reliability, allowing production teams to maintain a consistent and high-performance workflow even under pressure. The IPR-10G2-SDI’s low-latency processing makes it ideal for live sports broadcasts, concerts, or remote production setups where real-time video transmission is critical.Network Flexibility and IntegrationThe IPR-10G2-SDI connects to IP networks through 10 Gigabit Ethernet (10GbE), allowing it to handle high-bandwidth video and audio streams with ease. Its support for multi-channel HD video over IP makes it versatile for a wide range of broadcast and production applications.The device is compatible with NMOS control standards, making it easier for users to manage IP media devices in a unified network environment. This flexibility enhances its usability in large-scale broadcast setups, where multiple devices need to be controlled and monitored from a central point.Compact and Durable DesignThe AJA IPR-10G2-SDI is housed in a compact, fanless enclosure, ensuring quiet operation in noise-sensitive environments such as control rooms or production studios. Its durable design ensures it can withstand the rigors of both studio and field use, making it a reliable choice for various production scenarios.Its compact size makes it easy to integrate into existing setups, and the fanless design ensures it does not contribute to unwanted noise in sensitive audio environments.Seamless Integration with Existing WorkflowsThe IPR-10G2-SDI offers plug-and-play functionality, allowing users to quickly and easily integrate it into their production setup. Its compatibility with both IP and SDI workflows makes it a flexible tool that bridges the gap between modern IP-based systems and traditional SDI workflows. This versatility is particularly valuable for broadcasters and production teams who are in the process of transitioning from SDI to IP infrastructures but need to maintain compatibility with legacy SDI devices.By offering support for multi-channel video, audio, and metadata over IP, the IPR-10G2-SDI provides a comprehensive solution for handling complex broadcast and production workflows.Applications in Broadcast and ProductionThe AJA IPR-10G2-SDI is ideal for a wide range of applications, including broadcast facilities, live production, and post-production environments. Its ability to convert HD SMPTE ST 2110 IP streams to 3G-SDI makes it an essential tool for broadcasters looking to integrate modern IP video technology into existing SDI infrastructures.The IPR-10G2-SDI is well-suited for use in live sports broadcasts, remote productions, and studio environments where a mix of IP and SDI workflows is required. Its low-latency performance, support for multi-channel audio, and robust construction make it an indispensable part of any professional video workflow.ching, providing redundancy protection for critical distribution and monitoring applications.The IPR-10G2-SDI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing baseband environments such as master control, a truck, or an edit suite.

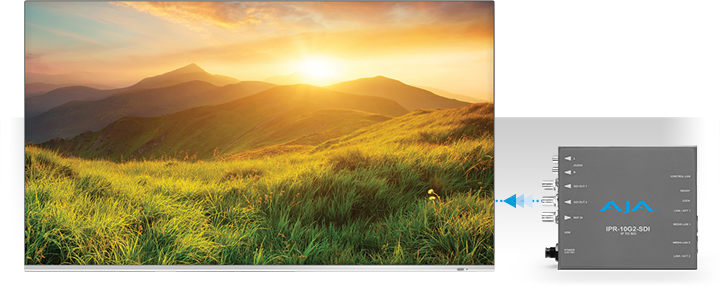

Monitor ST 2110 Video and Audio from anywhere on the Network

The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications including source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs with mirrored source video, you can drive a display and connect to 3G-SDI simultaneously.With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router, or edit bay via IP and provide SDI monitoring at the destination while feeding your video and audio further into a 3G-SDI chain.The AJA IPR-10G2-SDI receive SMPTE?ST 2110 IP video and audio, then formats the data for output over 3G-SDI.The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI interface as well as output on an analog RCA interface.

Workflow

IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP-compatible devices. Combine your IPR-10G2-SDI units with AJA KONA IP (I/O card for use in desktop workstations) to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

User Control

IPR-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates.

• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1x USB 2.0 Mini-B (IEC 62680-1) connector

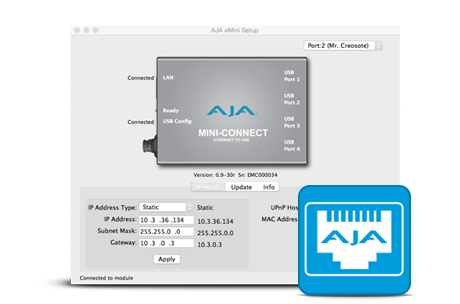

• AJA eMini-Setup of network parameters
